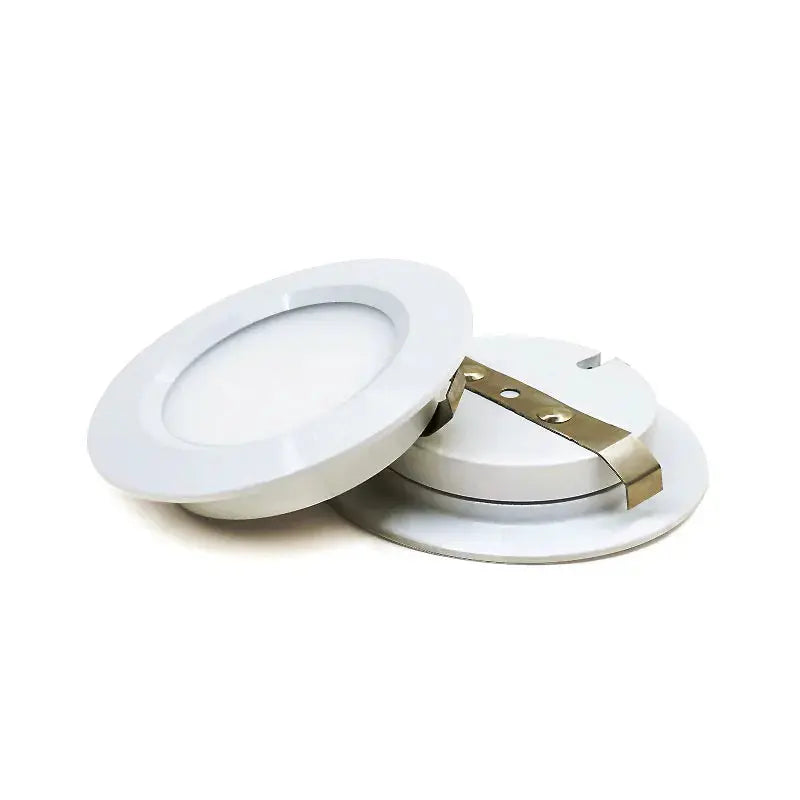

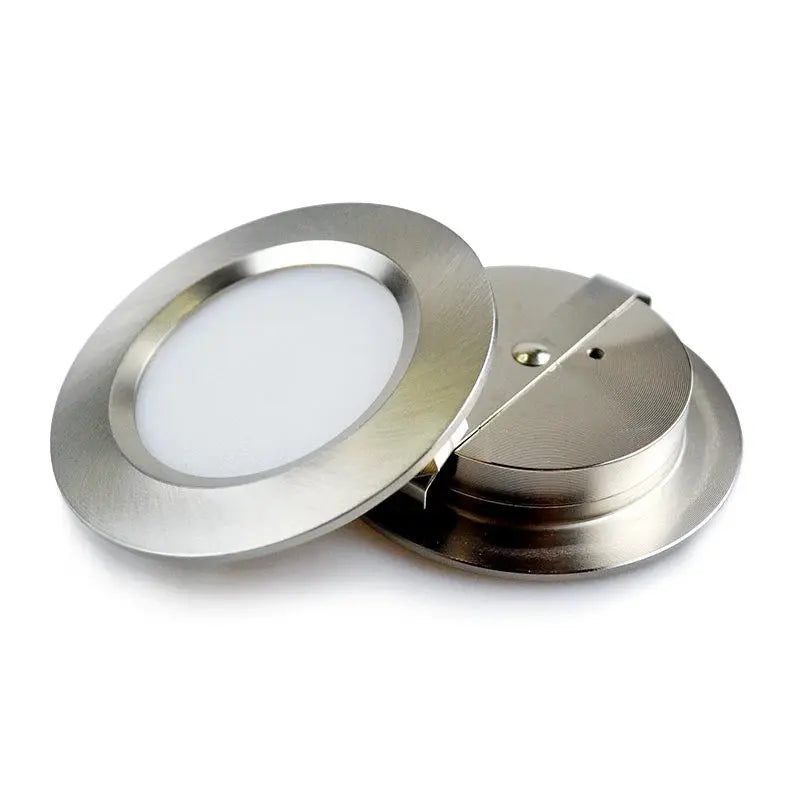

Solve your clearance headaches with the Ultra-Thin 14mm Recessed LED Light. With a depth of less than 0.6 inches, this fixture is engineered to fit where standard recessed lights cannot—under cabinets, inside furniture, in thin RV ceilings, or in ceiling voids with ductwork obstructions.
Rated IP65 Waterproof, this 12V low-voltage fixture is the professional choice for shower niches, exterior soffits, and marine applications (boats/yachts). The wide 120° beam angle provides a smooth, diffused wash of light, perfect for general illumination without hot spots.
Key Features & Benefits Ultra-Slim Profile (14mm Depth): Fits into 3/4" plywood or tight ceiling cavities effortlessly. The ultimate problem-solver for joinery and retrofits.
IP65 Waterproof Rating: Sealed against moisture, steam, and water jets. Safe for installation in bathrooms, showers, and outdoor eaves.
12V Low Voltage Safety: Powered by 12V DC, making it safe for DIY installation and natively compatible with RV, Camper Van, and Marine battery systems.
Wide 120° Flood Beam: Delivers even, shadow-free lighting perfect for under-cabinet counters and closets.

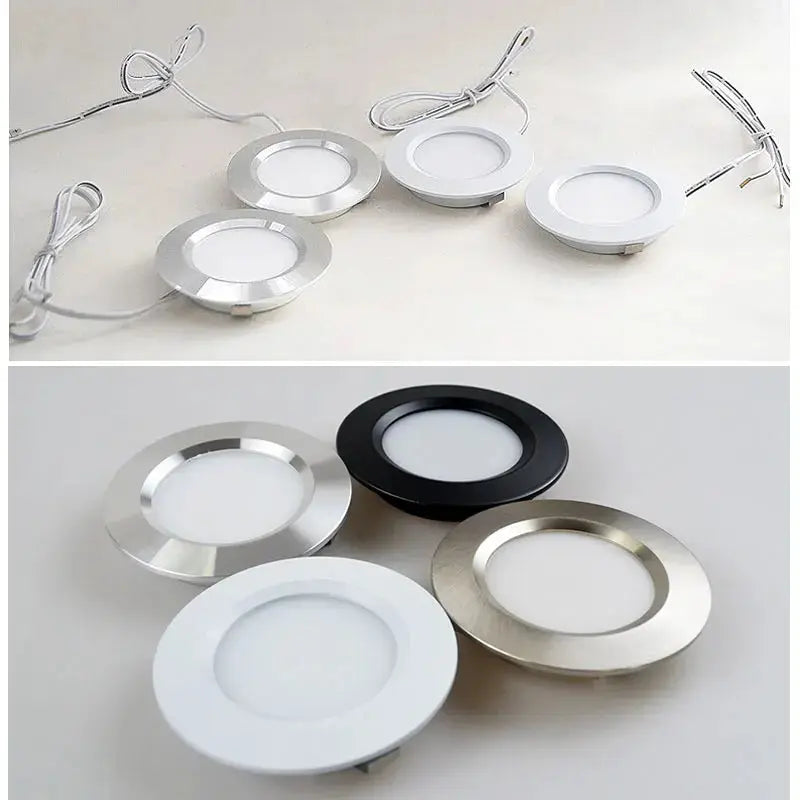

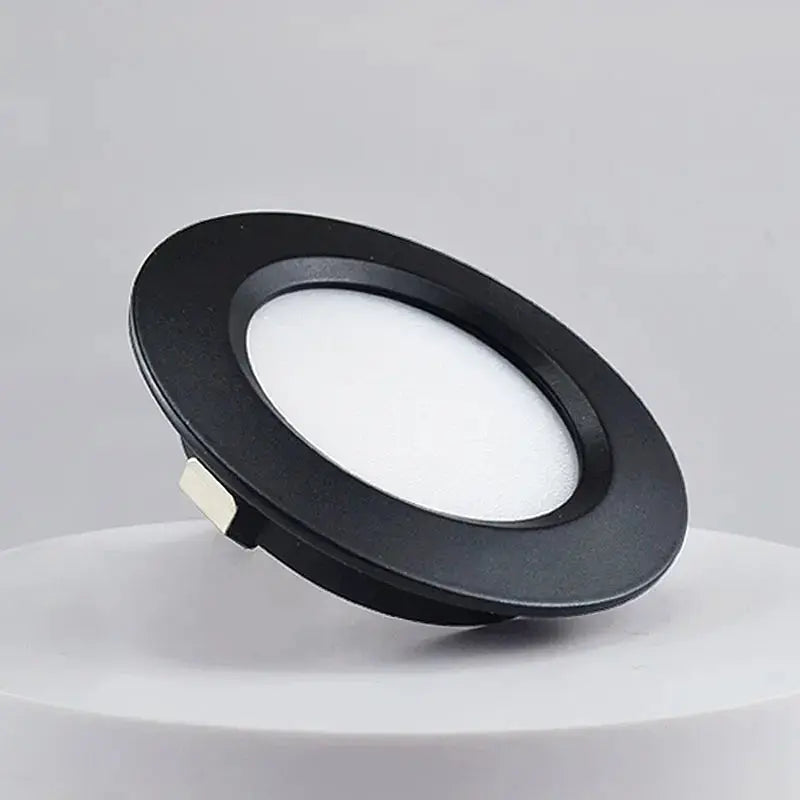

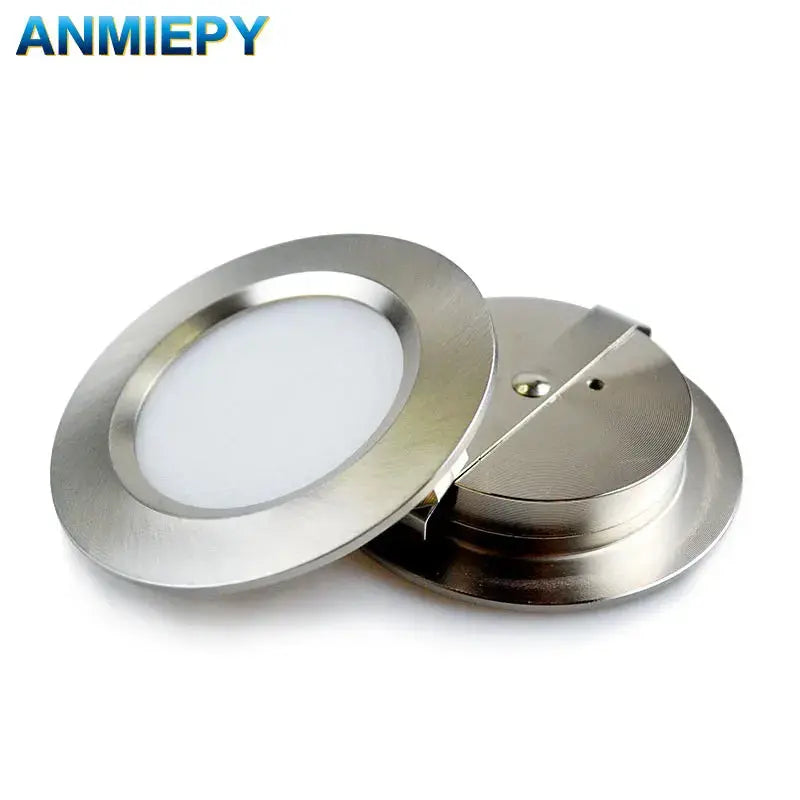

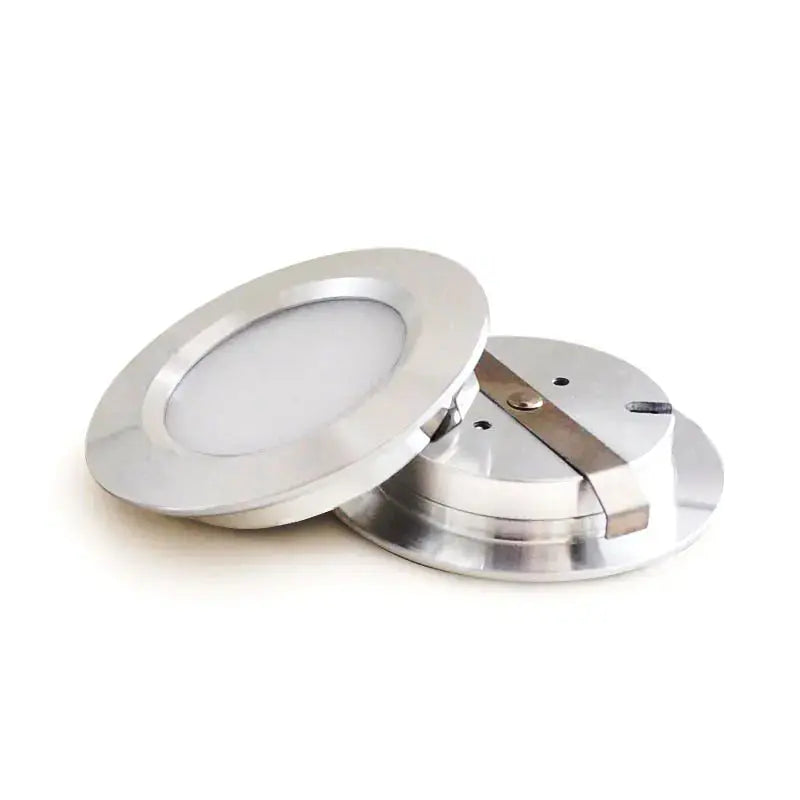

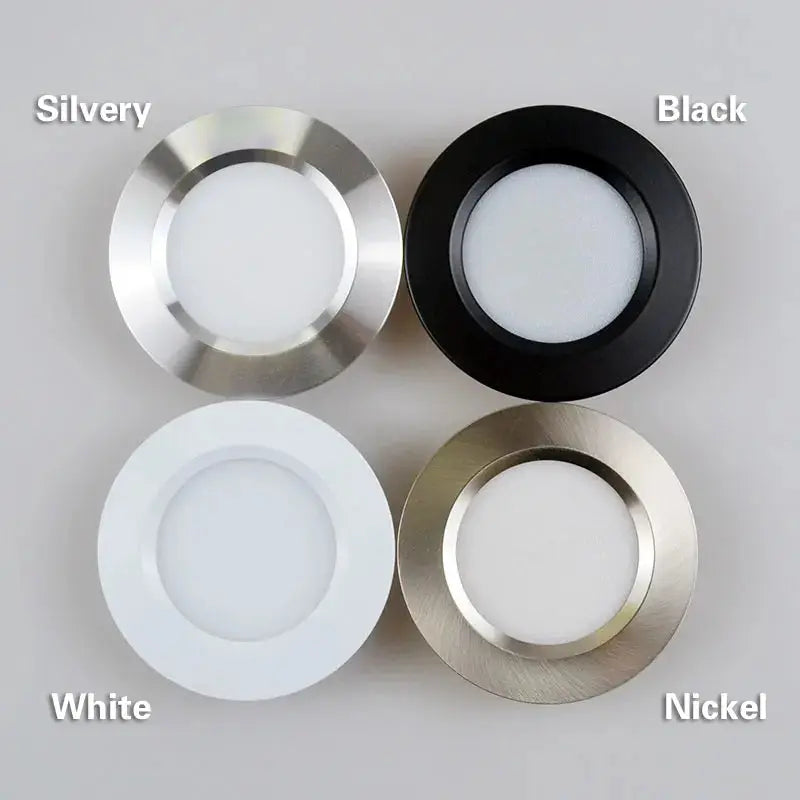

Multiple Finishes: Available in White, Black, Silver, and Nickel to match your hardware and decor.

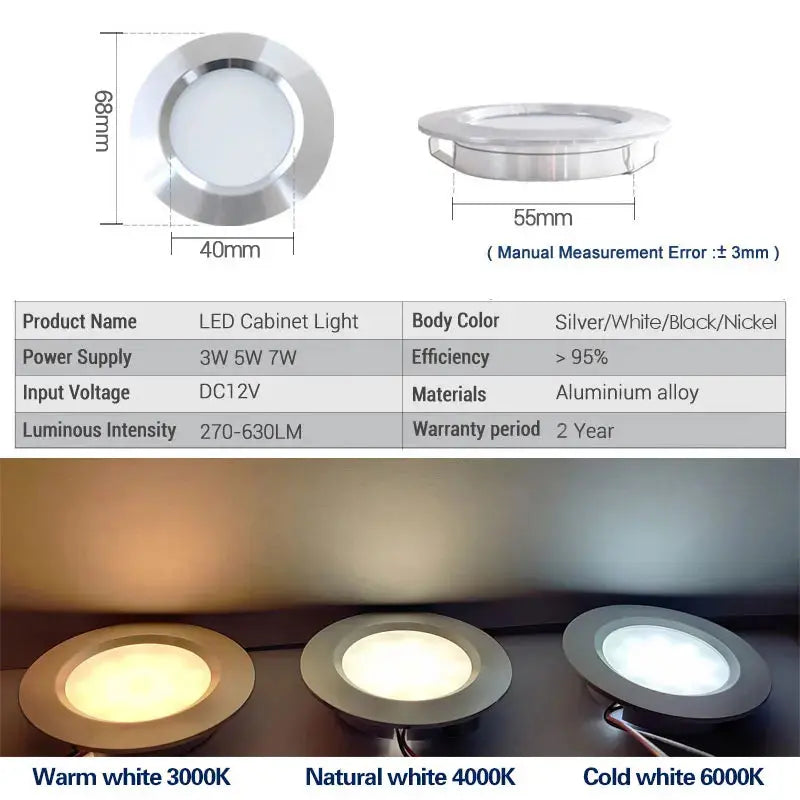

Technical Specifications Product Type: Ultra-Thin Mini Downlight / Cabinet Puck
Cutout Size (Hole): 55mm - 60mm (~2.15" - 2.35")
Outer Diameter: 68mm
Depth/Height: 14mm (Ultra-Thin)
Input Voltage: 12V DC (Requires Transformer for Home Use)
Wattage Options: 3W, 5W, 7W
Light Source: 2835 SMD LED Chip
Lumen Output: 270lm - 630lm
Beam Angle: 120° (Wide Flood)
CRI: ≥80Ra
Waterproof Level: IP65 (Wet Rated)

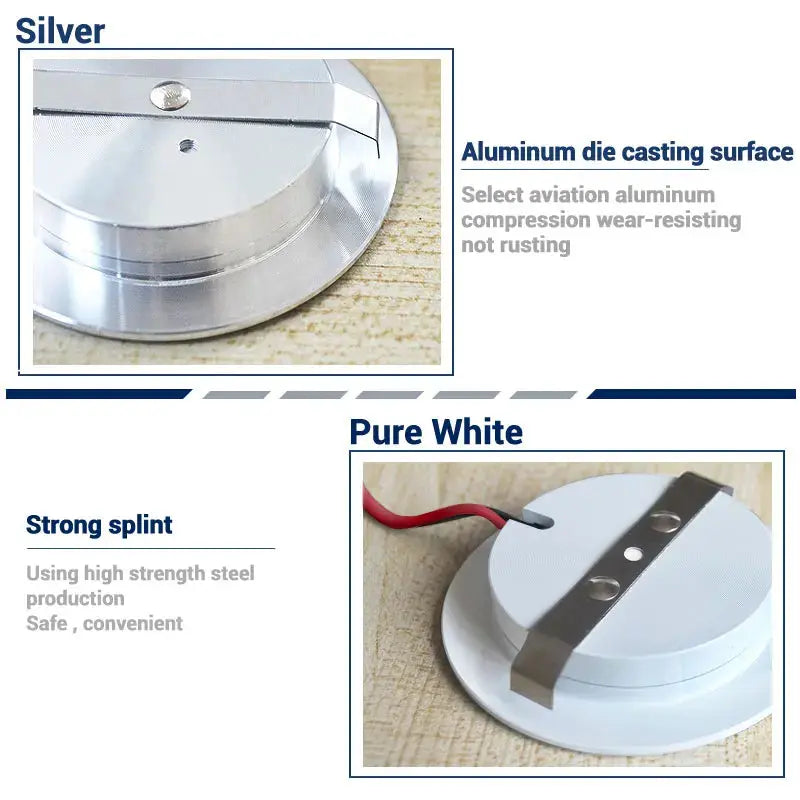

Material: Aluminum Body (Heat Dissipation)
Dimmable: No (Standard Static Output)
Color Temperature:
Warm White (2700K-3000K): Cozy, soft glow.
Natural White (4000K-4500K): Clean, bright task light.
Cold White (5700K-6500K): High contrast daylight.
Recommended Applications Cabinetry & Millwork: Recess directly into the bottom of kitchen cabinets or bookshelves.
Mobile Living (RV/Van Life): Connects directly to 12V battery banks for efficient, low-profile ceiling lighting.
Bathrooms: Ideal for shower niches or over-tub lighting due to IP65 rating.
Marine: Corrosion-resistant aluminum and 12V input make it perfect for boat cabins.
Important Installation Note: This fixture operates on 12V DC.
For Home/Business (120V): You must use a 12V DC LED Driver/Transformer (Sold Separately). Connecting directly to AC 110V/220V will damage the light.
For RV/Auto: Can be wired to the 12V DC battery system (fuse recommended).
