SPECIFICATIONS

Brand Name: NONE

Certification: ce

Choice: yes

Current: 300ma

High-concerned chemical: None

Item Type: BALL

Model Number: 3vlf

Origin: Mainland China

Voltage: 3V

semi_Choice: yes

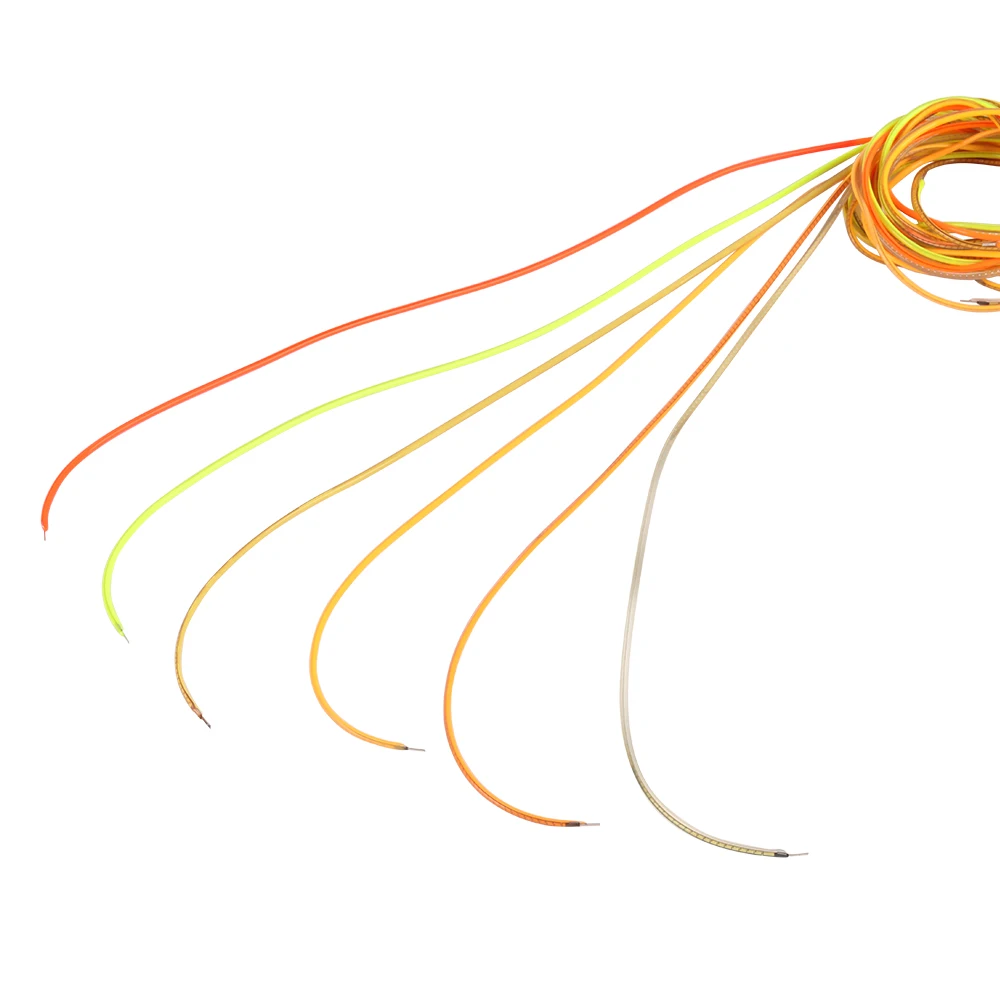

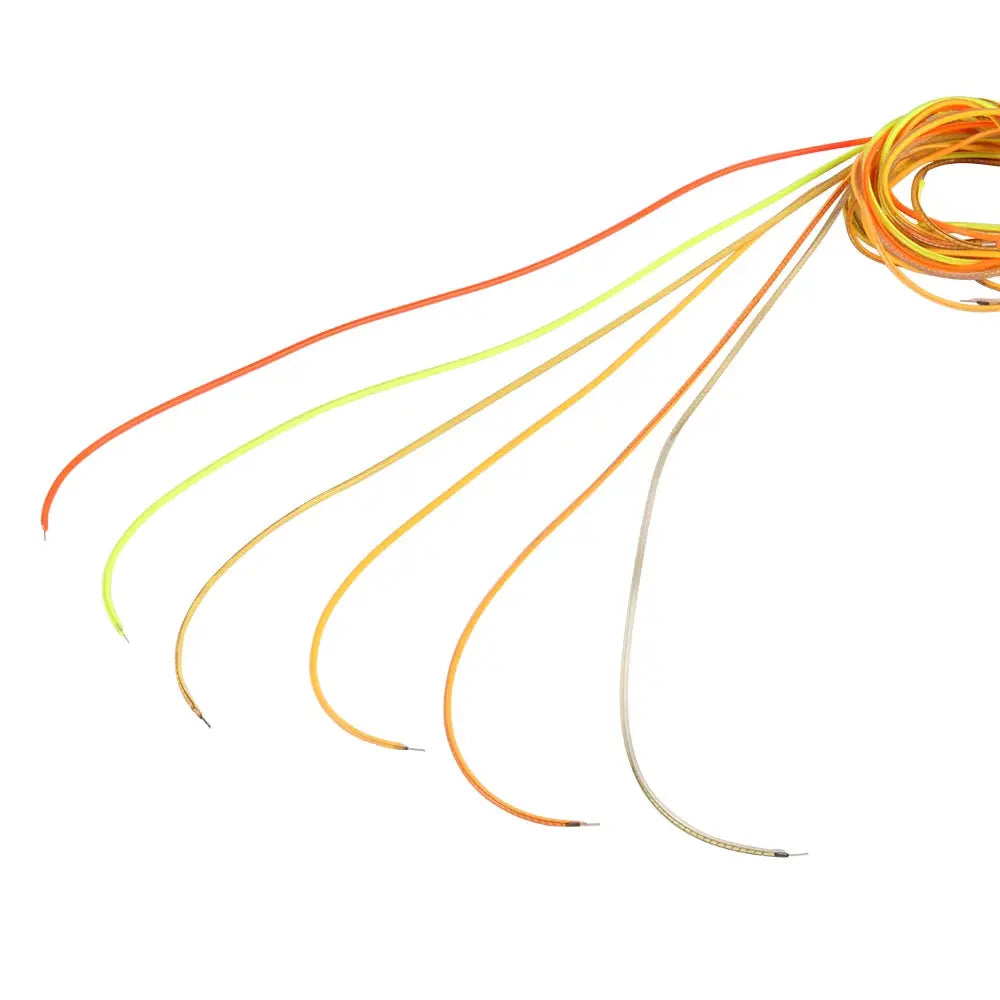

Filament LED Chip for LED Edison Bulb Lamp DIY Warm White Red Green Blue Pink

Operating on 3V/9V/12V/24V DC, this LED filament is a great DIY parts for edison bulbs, and crafts, with which you could make varies shapes you want.

Power connections are on both ends (one end(with hole) is positive and the other is negative).

Colours in blue, green, red, 2200K 2700K warm white.

Length from 30mm 60mm 80mm 130mm 185mm 300mm 600mm 1200mm.

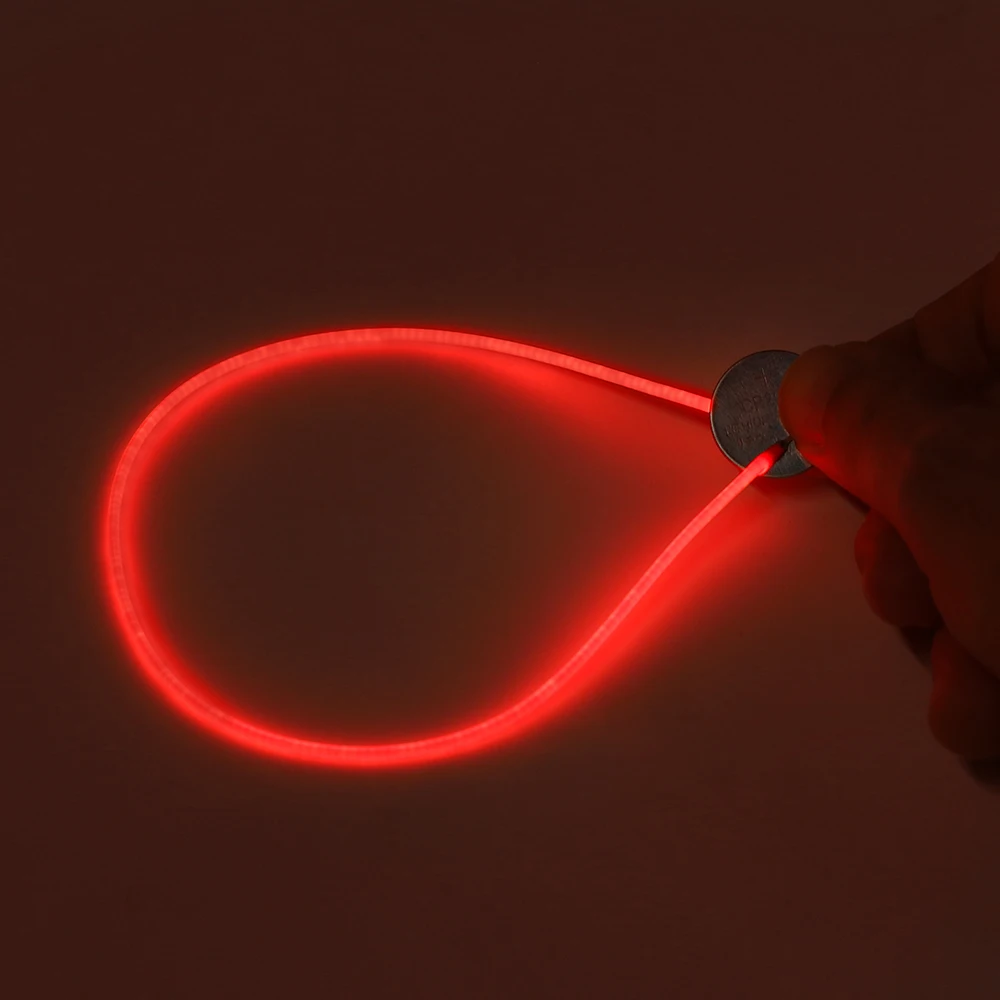

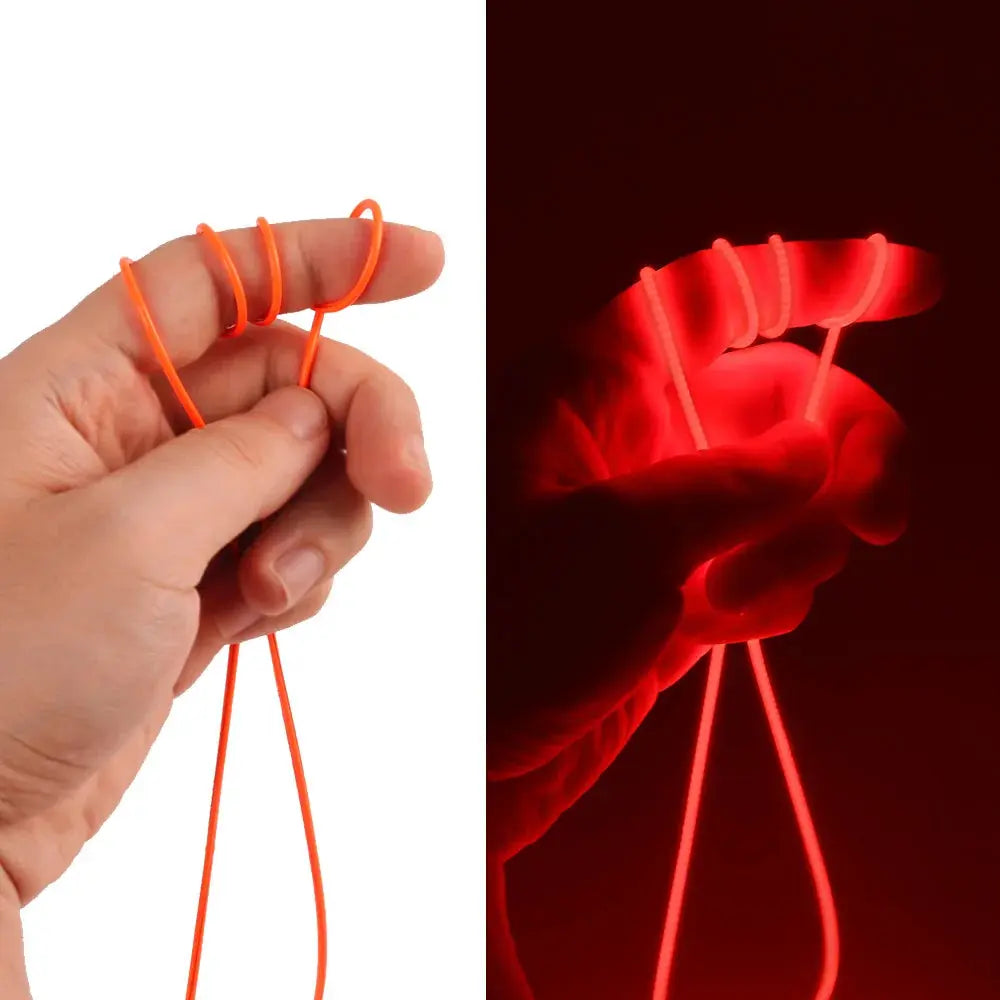

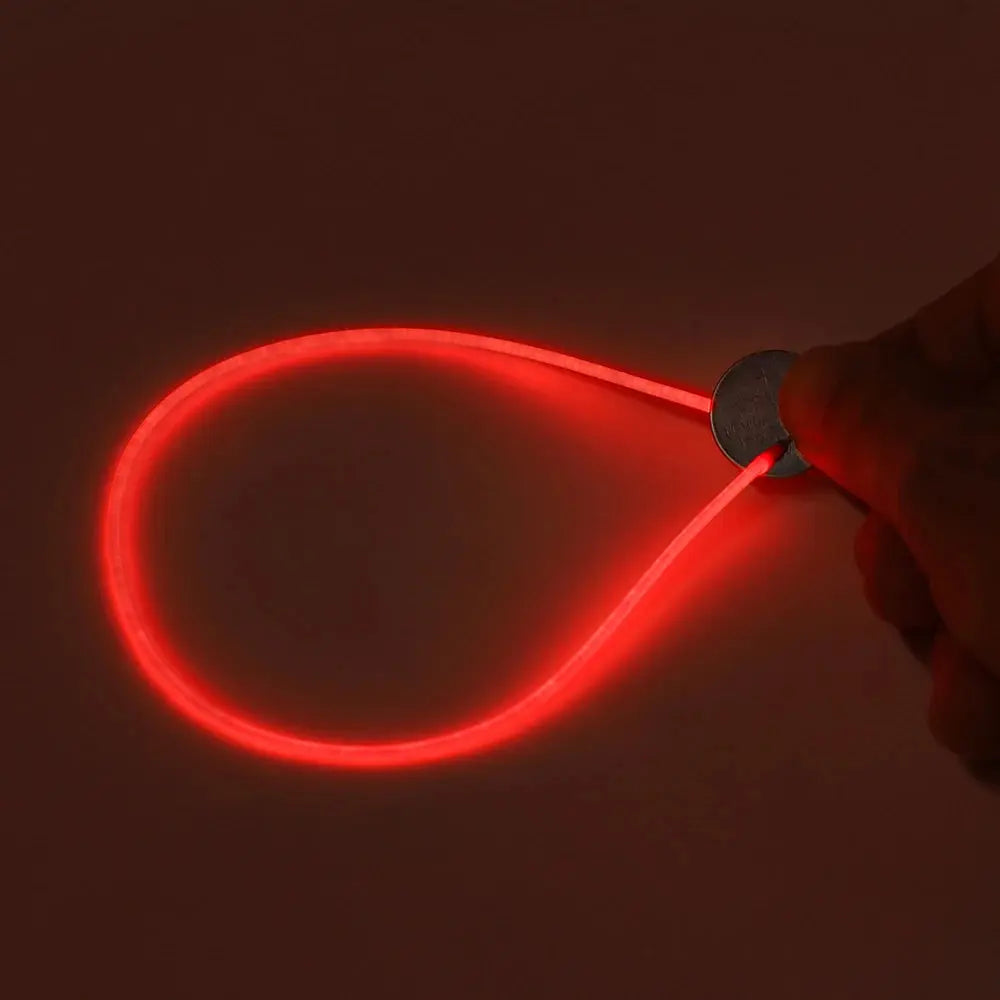

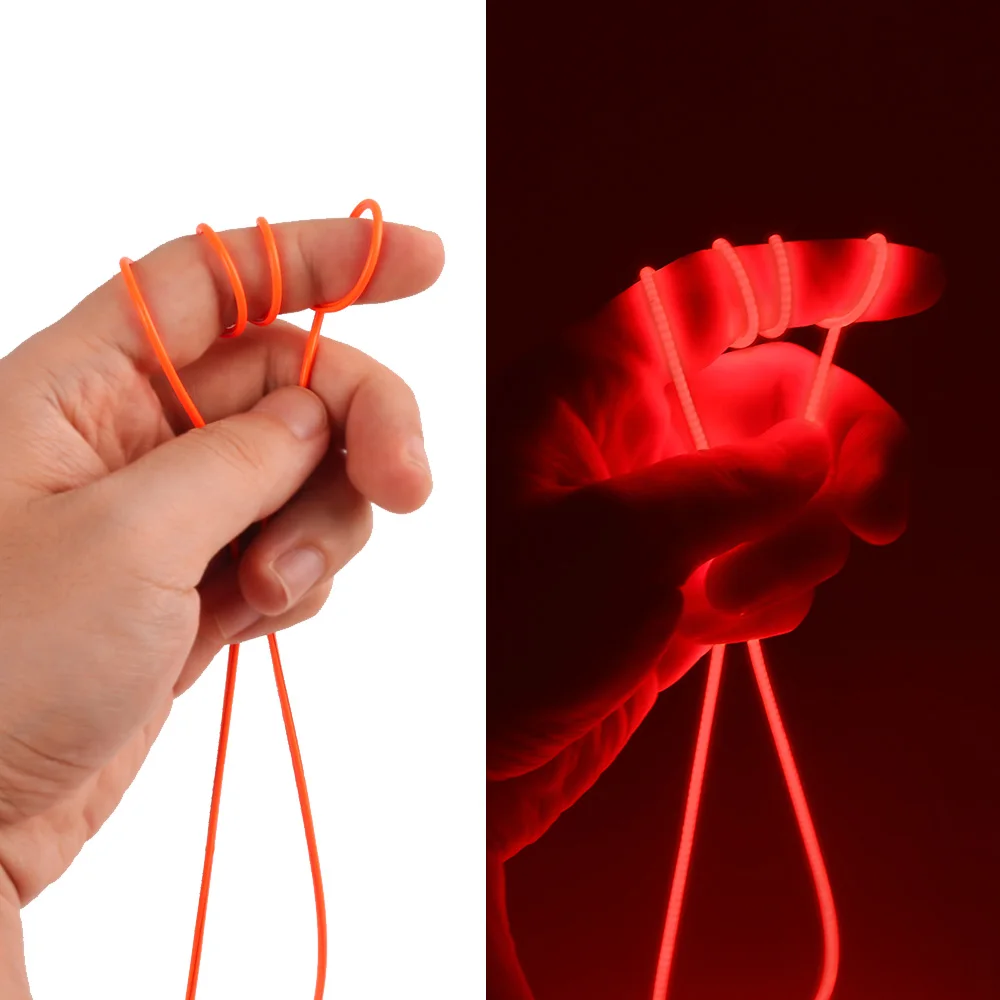

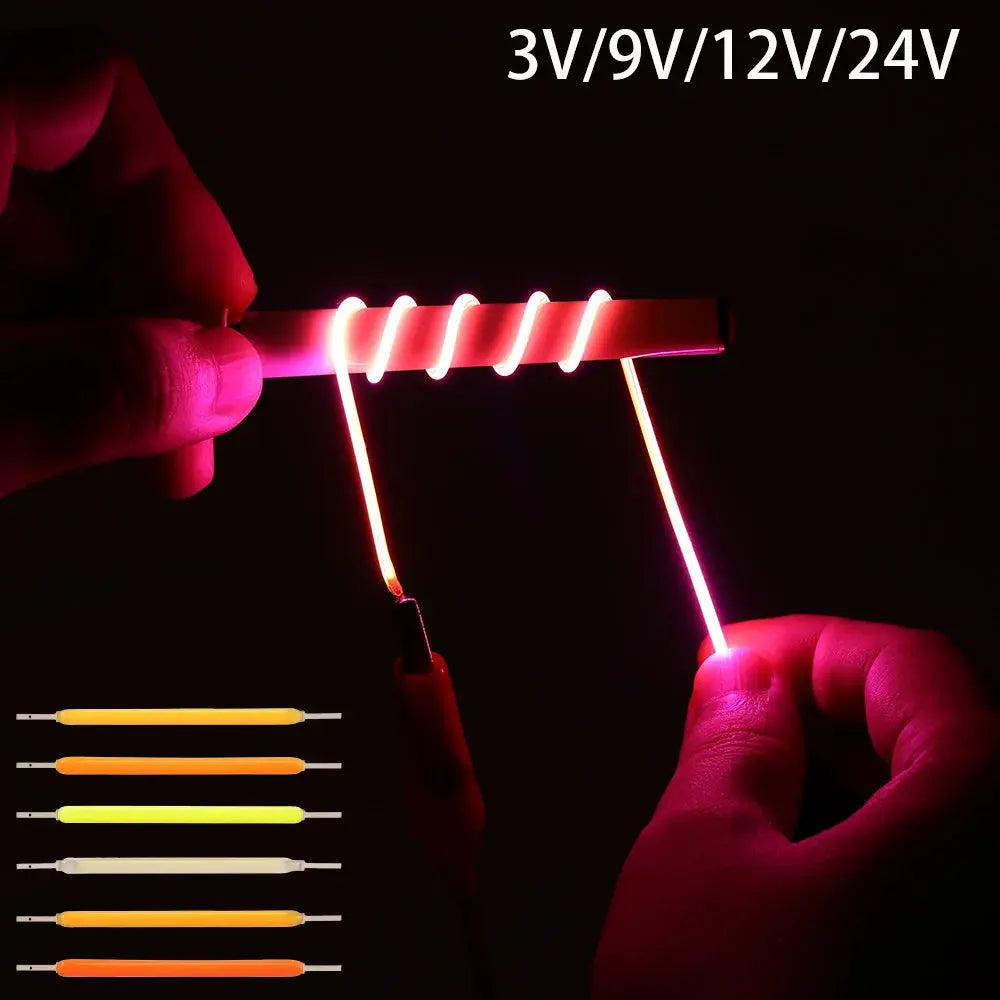

You may use it to make varies shapes, like Sprial, Heart, Love and many other creative lamps.

As sold here, these are a DIY product, which means you need to solder them yourself and add the appropriate resistors for the voltage you're using.

Features:

Working Voltage: DC3V/9V/12V/24V.

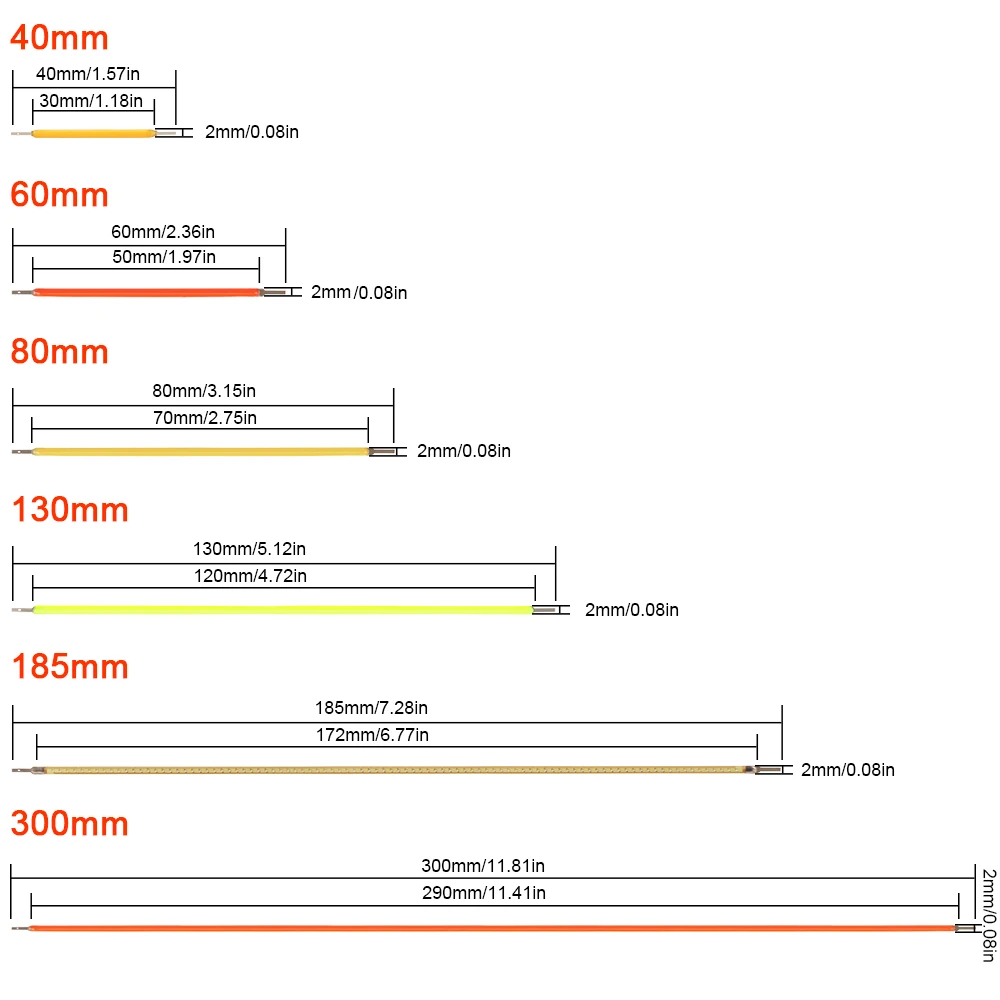

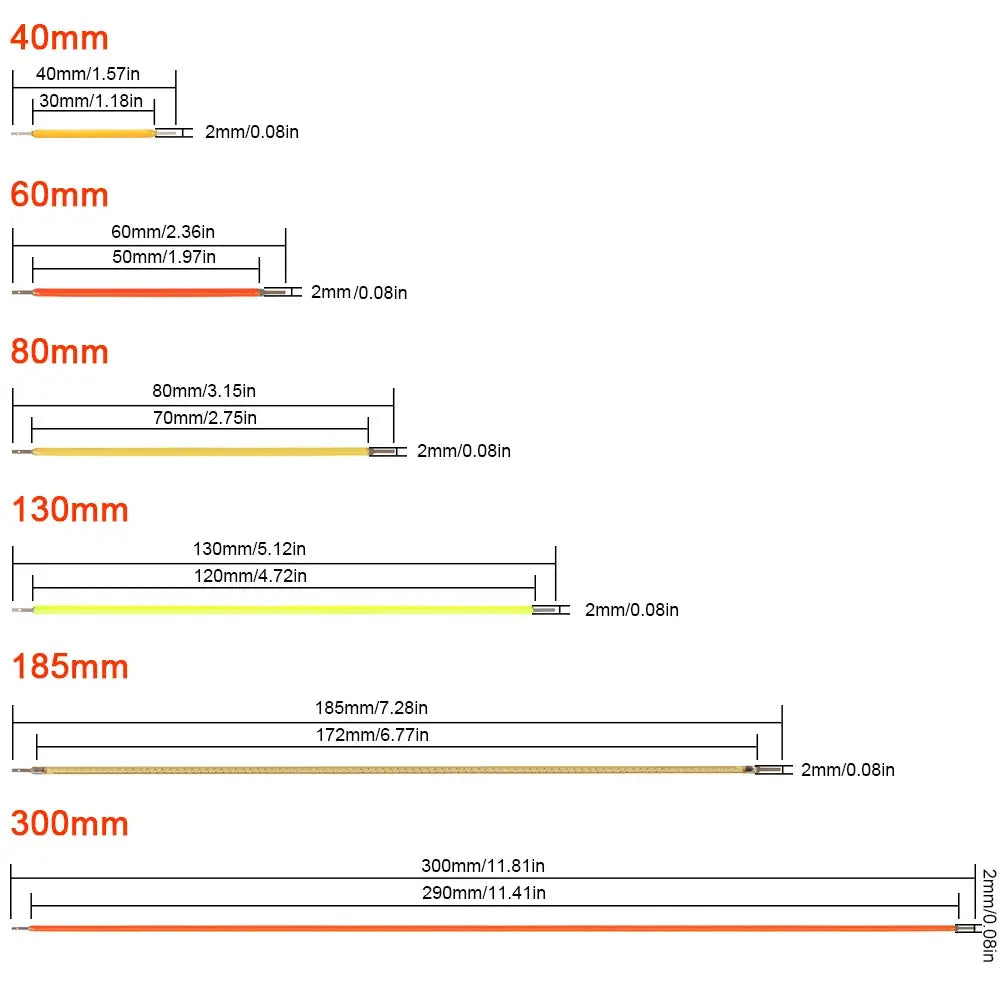

Dimension: 38mm/60mm/80mm/130mm/185mm/300mm/600mm/1200mm, optional

Color: 2200K 2700K Red Blue Green Pink, optional

CRI: Ra80+

Power from 2 ends, the end with small hole is for +, the other is for -

Work temperature: -20~45°C

Not waterproof

Current limitation: Please use current limit resistor if needed

38mm <3V 100mA

60mm  <3V 200mA

80mm <3V 300mA

130mm<3V 300mA

185mm<3V 300mA

300mm<3V 300mA, 12V 100mA, 24V 130mA

600mm<12V 400mA, 24V 250mA

1200mm<24V 200mA

Package list:

1 pack LED Flame Filament
